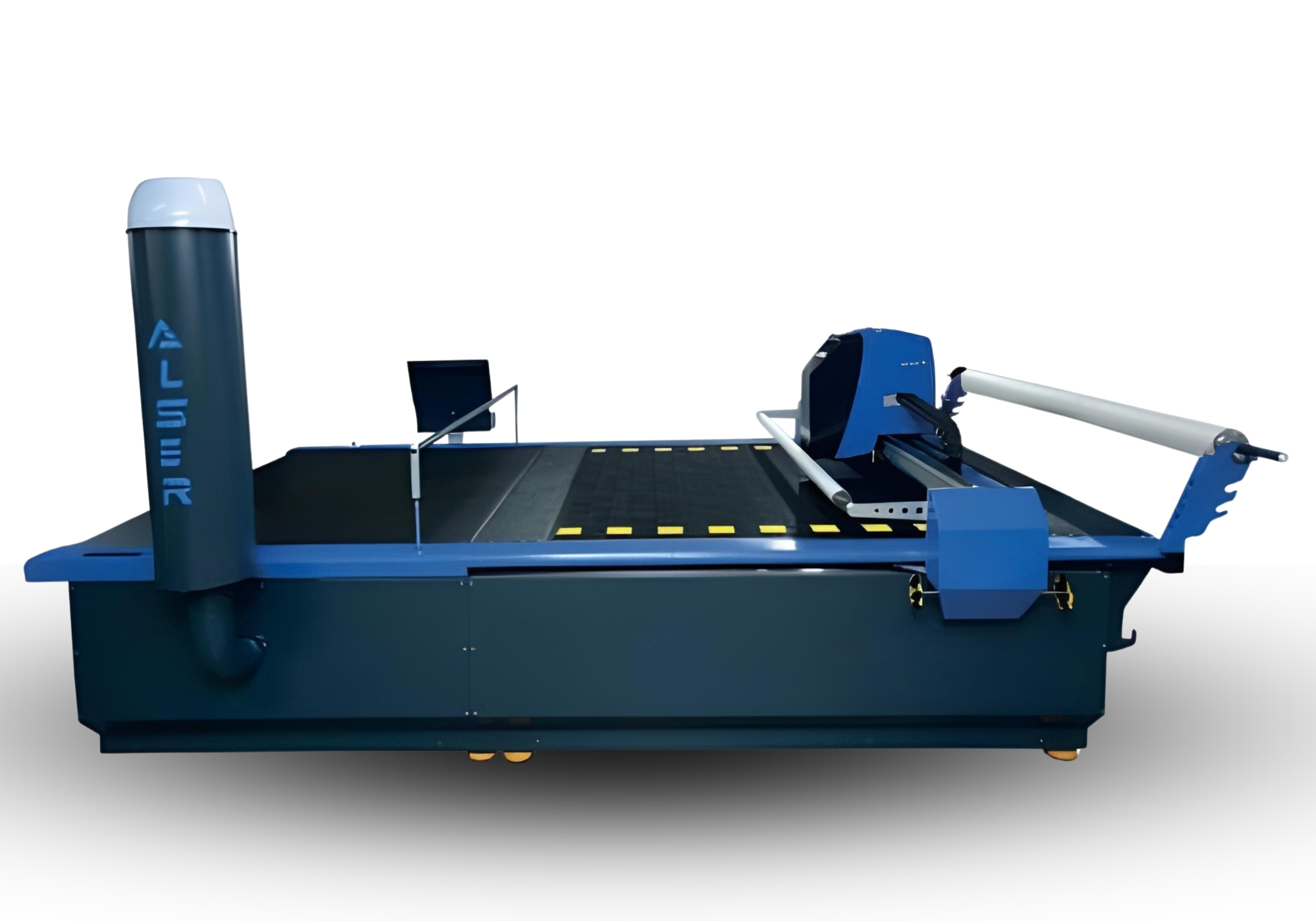

ALCUT 9 Multi-Layer Cutting Machine
Product Code: ALC9
Redefine your production standards. Our new-generation cutting machine combines power and precision with an exceptional 9 cm vacuum cutting capacity and a precise XY transmission system. While smart automation features, such as an automatic knife sharpening and cooling unit, ensure continuous production, its 98% CAD software compatibility offers full flexibility. Thanks to its two-part modular chassis, it is easily transported and quickly installed, optimizing your costs with low energy consumption.
Advanced Cutting Technology
Meet our next-generation cutting machine, designed to elevate your production line to the pinnacle of efficiency. Do more than just cut—redefine the standards in your industry. Thanks to its high-precision chassis, tackle even the most demanding materials with an extraordinary cutting capacity of up to 9 cm under vacuum.
This machine is engineered to optimize your operations by combining raw power with intelligent technology.
Flawless Performance and Superior Precision
Achieve perfect results every time. The powerful and speed-adjustable vacuum pump keeps the material stationary, while the XY transmission system (gear and rack) provides precise movement capability without deviation for many years. The locally produced cutting brush, distinguished by its durability and high friction coefficient, elevates cutting quality to the highest level.
-
Powerful Vacuum Pump: Perfect adaptation to different materials thanks to speed adjustment.
-
Precision XY Transmission: Durable gear and rack system for long-lasting and error-free cuts.
-
Film Overlay Support: The film covering feature for cut fabrics maintains vacuum suction and prevents slippage.
Continuous Production with Intelligent Automation
Minimize downtime. The Automatic Blade Sharpening Module, equipped with a long-lasting sharpening stone, ensures your blade remains sharp at all times. The innovative cooling unit prevents the blade from sticking to the materials, guaranteeing a clean and smooth cut even in the stickiest substances.
-
Automatic Blade Sharpening: Continuous operation with minimum maintenance requirements.
-
Blade Cooling Unit: Prevents material sticking and reduces waste rates.
-
Automatic Sensor System: Sensors developed for the secondary film cover detect and reduce air leakage during cutting, maximizing vacuum efficiency.
Full Control and Limitless Flexibility

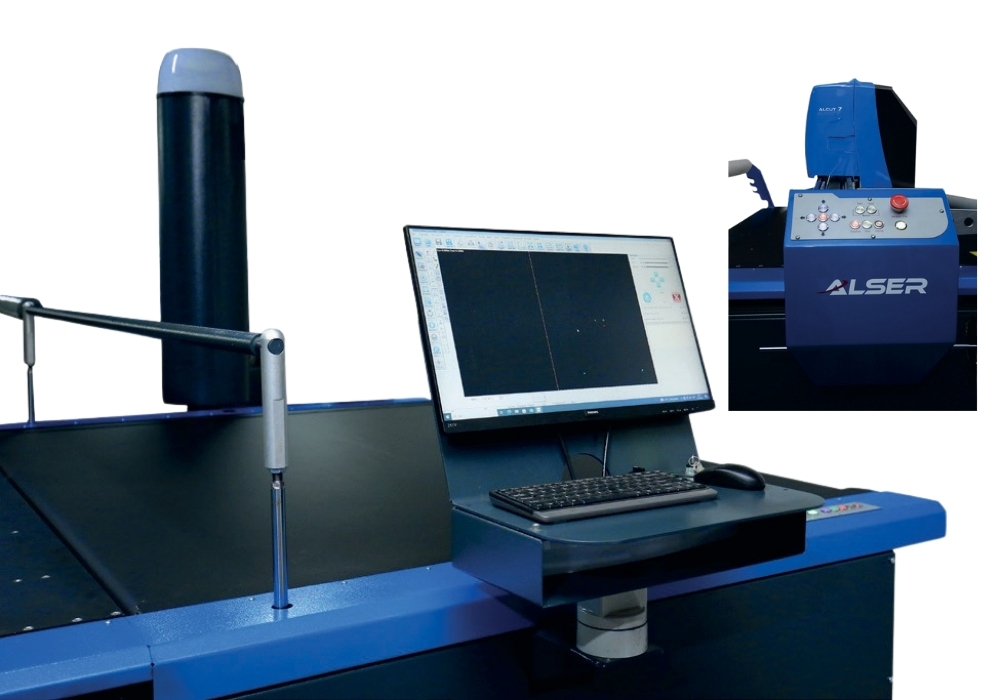

Streamline your workflow. The LCD monitor, equipped with an Intuitive Control Screen and the familiar Windows operating system, provides your operators with full command over the machine. Managing the cutting process and monitoring results clearly has never been easier.
-
Universal Compatibility: Our control system is fully compatible with 98% of fabric CAD software and seamlessly accepts various file formats such as PLT, DXF, CUT, and TAC.
-
Customizable Drilling Module: Increase your production flexibility with a customizable number of modules and sizes, in addition to standard 1.5–20mm diameter options.
Smart Design: Safe, Efficient, and Modular
Not just a powerful machine, but a smart investment. The mechanical safety barrier provides maximum occupational safety for your operators. Achieve high performance with low energy costs, thanks to efficient energy usage between 16–25 kW.
One of our greatest innovations, the two-piece modular chassis structure, redefines logistics and installation processes. Thanks to this easily transportable structure, the assembly process is completed in record time, granting you flexibility in your production area and perfectly optimizing space usage.
